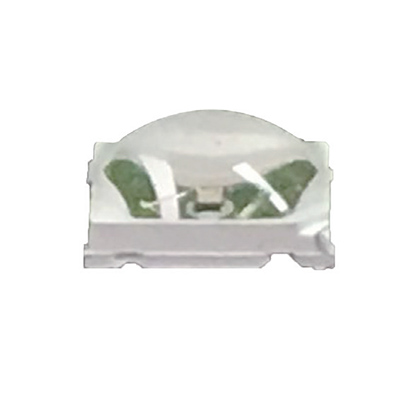

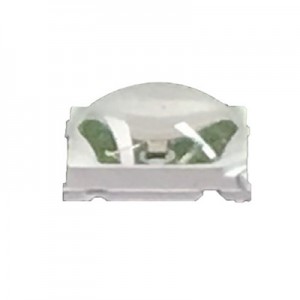

High light efficiency with lens 2835 UVA series

Application:


  • ●Nail lamp ●Mosquito lamp
  • ●Lighting source ●Money detector
  • ●The stage lights ●Clothing lights
  • ●The sterilization lamp
  • Product Details

    FAQ

    Product Tags

    Product Description

    Ultraviolet radiation is a kind of electromagnetic radiation, which is not visible light but a segment of electromagnetic radiation other than visible purple light. The spectrum range of ultraviolet radiation is 100-380nm, and the largest natural source of ultraviolet radiation is sunlight. It plays an important role in life on Earth, often depending on its nature.
    UV light source has been widely used in plate drying, exposure, light curing and other equipment, in the PCB industry, exposure equipment (water cooling, air cooling) and UV light fixation equipment is more inseparable from the application of UV light source, its quality directly determines the quality of PCB finished products, UV light source is a core accessories of these equipment.There are many kinds of UV light sources, which are applied to different industries according to their different spectral divisions.
    The 2835 LED light source is a high-performance energy-saving device that can handle high heat and high drive current.Small size, high strength, is the ideal choice of LED nail lamp, LED mosquito lamp, LED lamp, curing, etc
    The Purple LED light source with peak wavelength ranging from 365nm to385nm.This part has a foot print that is compatible to most of the same size LED in the market today.
    Size: 2.8x 3.5 mm
    Thickness :0.7mm;1.65 mm
    Power: 0.5W

    Key Features
    ●High luminous Int ensity and high efficiency
    ●Eye-safe,405nm wavelength
    ●High power, fast curing efficiency
    ●Solar UV light, 365 395nm dual wavelength
    ●Small Angle, high power
    ●Low thermal resistance
    ●Long operation life
    ●Wide viewing angle at 120°
    ●Silicone encapsulation
    ●Environmental friendly, RoHS compliance

    Product Number Thickness Ratedvoltage
    (v)
    Ratedcurrent
    (ma)
    Peak wavelength
    (nm)
    Radiant Flux
    (mw)
    Viewing Angle
    2θ1/2
    Min. Typ. Max. Typ. Max., Typ. Min. Typ. Typ.
    2835U03-05C65D12-
    XXXX-XXX
    0.7mm 3.4 3.6 3.8 60 80 365 40 80 120
    2835003-05C85D12-
    XXXX-XXX
    3.2 3.4 3.6 60 80 385 40 80 120
    2835U03-05C95D12-
    XXX-XXX
    3.2 3.4 3.6 60 80 395 40 80 120
    2835U03-05D05D12-
    XXXX--XXX
    3.2 3.4 3.6 60 80 405 40 80 120
    2835UO3-05C65D12-
    xxXX-xXX
    1.65mm 3.4 3.6 3.8 80 150 365 120 200 120
    2835U03-05C85D12-
    xXXX-xXX
    3.4 3.6 3.8 8o 150 385 150 250 120
    2835U03-05C95D12-
    xXXX-xXX
    3.4 3.6 3.8 80 150 395 150 250 120
    2835UO3-05D05D12-
    xxXX-xXX
    3.4 3.6 3.8 80 150 405 150 250 120
