● CCT : from 2700K to 5700K
● 6/8.9/12/19 mm LES
● Offer CRI 90
● 3-step binning
● Voltage:9V/36V
● LM-80 certified

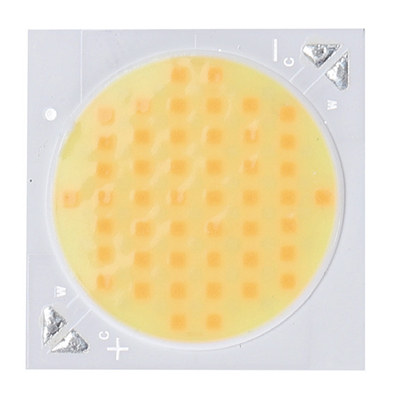

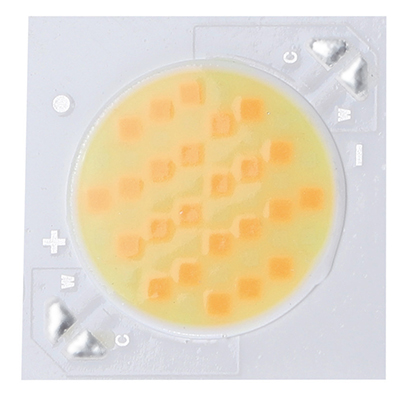

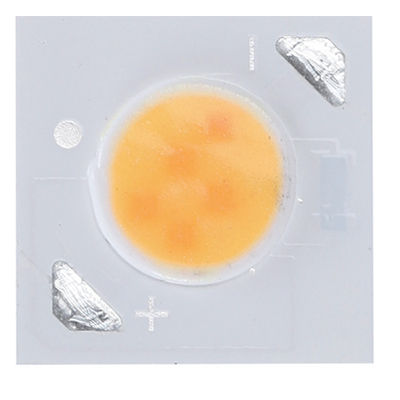

Product Number | Luminous surface (LES) |
Typ.Ra | [K] | [Im] | [lm/w] | [mA] | [mA] | Typ.Vf | [W] | [mA] | [W] |
CCT | @Typ.If | @Typ.If | Typ.lf (C-C) |
Typ.lf (W-W) |
Power | Max.If | Max.Power | ||||
MF-13DA-2757-5S-3232-K7 | 6mm | 92 | 2700 | 571 | 91 | 100 | 600 | 9 | 6.3 | 800 | 7.2 |
5700 | 704 | 112 | 670 | 30 | |||||||
MF-15DA-2757-SS-C1C1-K7 | 8.9mm | 92 | 2700 | 1156 | 89 | 50 | 300 | 36 | 12.6 | 420 | 15.1 |
5700 | 1418 | 109 | 335 | 15 | |||||||
MF-18DB-2757-SS-C2C2-K7 | 12mm | 92 | 2700 | 2183 | 87 | 100 | 600 | 36 | 25.2 | 840 | 30.2 |
5700 | 2723 | 108 | 670 | 30 | |||||||
MF25DA-2757-SS-C4C4-K7 | 19mm | 92 | 2700 | 4141 | 82 | 200 | 1200 | 36 | 50.4 | 1680 | 60.5 |
5700 | 5171 | 103 | 1340 | 60 |
