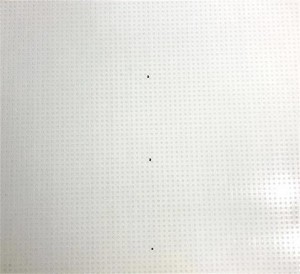

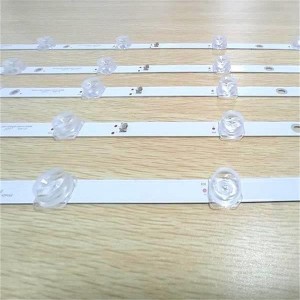

Direct LED backlight
When edge-lit LED backlights are used in medium and large-sized LCDs, the weight and cost of the light guide plate will increase with the increase in size, and the brightness and uniformity of the light emission are not ideal. The light panel cannot realize the regional dynamic control of the LCD TV, but can only realize simple one-dimensional dimming, while the direct-lit LED backlight performs better and can realize the regional dynamic control of the LCD TV. The direct backlight process is... -
Edge-lit LED backlight
LED backlight refers to the use of LEDs (light emitting diodes) as the backlight source of the liquid crystal display, while the LED backlight display is just the backlight source of the liquid crystal display from the traditional CCFL cold light tube (similar to fluorescent lamps) to LED (light emitting diode). The imaging principle of liquid crystal can be simply understood as the fact that the external voltage applied to deflect the liquid crystal molecules will block the transparency of t... -
Mini LED
Mini LED technology is a new display technology. In addition to being used on TVs, Mini LED technology may also appear on smart devices such as tablets, mobile phones, and watches in the future. Therefore, this new technology is worthy of attention. Mini LED technology can be regarded as an upgraded version of the traditional LCD screen, which can effectively improve the contrast and enhance the image performance. Unlike OLED self-luminous screens, Mini LED technology requires LED backlight a... -
DC LED Module
Product Description ShineOn’s AC lighting module products are based on own IC drive solutions. The product forms include ordinary SMD DOB products, AC-COB series product series. Using linear drive scheme, with dimmable, low frequency flash characteristics point. The AC-COB series products that integrate flip-chip COB technology and AC module technology have ShineOn’s independent advantages, it can be used as the main product to strengthen market coverage. The low-frequency flash solution... -

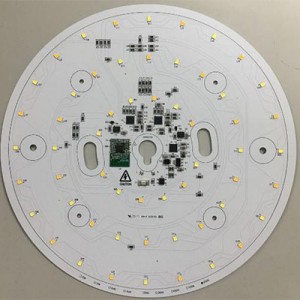

DOB Series with Bluetooth Mesh Technology
Product Description ●Connects directly to AC line voltage ●High lumen efficacy ●Power factor >0.95 and low THD ●Triac dimming compatible ●Long life time Bluetooth Mesh Series Product Number Size Voltage Power CCT Ra Lumen Efficacy Advantages (mm) (Vac) (w) (K) (lm) (lm/w) MDD-FOC4 φ150 120 15 3000 80 1550 103 ●The Bluetooth 5.0 standard SIG-Mesh technology; ●Connect and control the lamps through the mobile App; MDD-FOC5 ... -

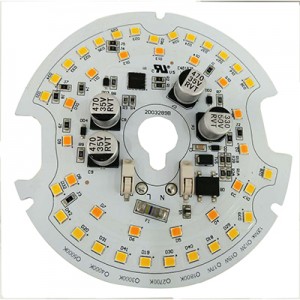

Flip-Chip technology SMD DOB series
Product Description Type Model name Size Voltage Power CCT Ra PF Lumen Efficacy Advantages (mm) (Vac) (W) (lm) (lm/W) MDD DOB MDD-AOC2-300-H-L12D 100 120 12.5 300OK Ra80 >0.95 1250 100 Connects directly to AC line voltage High lumen efficacy Excellent power factor and low THD MDD-AOC2-300-S-L12D 100 120 12.5 300OK Ra90 >0.95 1060 85 Triac dimming comply with NEMA SSL-7A MDD-AOC2-300-H-L15D 100 ... -

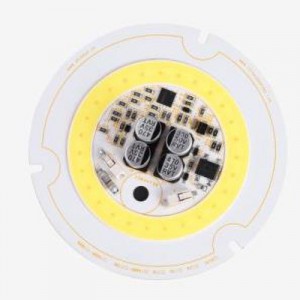

High reliability MDL WarmD Series
Product Description Key Features •Connects directly to AC line voltage •Meets California Title 24 requirements •PF > 0.97, THD < 20% •Dimming range 5% – 100% Type Product Number Size (mm) Voltage (Vac) Power (W) CCT (K) Ra Rf Luminousflux (Im) Efficacy (Im/W) MDL-A0C8 MDL-AOC8-300-S-L17D-WD φ100 120 17 1800 90 >0.95 1300 77 MDL-M8C2 MDL-M8C2-300-S-L30D-WD φ228.6 120 30 1800- 3000 90 >0.95 2900 97 ... -
Flexible LED Tape Constant Current Series
Product Description The range of single way dimmer color palette is 2000K-3000K. The products are mainly used in the home market, and the power is below 20W. They are direct replacements for traditional dimmable bulb lamps and halogen lamps. Application: home furnishing market – based such as domestic spotlights, floor lamps, wall lamps, bedside table lamps and so on Key Features ●High CRI / Rf/ Rg index (TM-30-18) ●Maximum run length 5 meters ●Full Spectrum 2835 LEDs ●Uniform... -

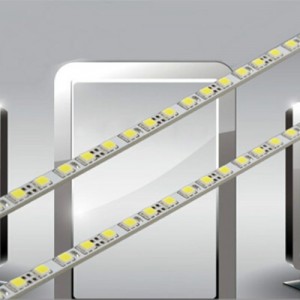

light bar
LED backlight refers to the use of LED (light-emitting diode) as the back light source for LCD screens. Compared with the traditional CCFL (cold cathode tube) backlight source, LED has the characteristics of low power consumption, low calorific value, high brightness and long life, which is expected to completely replace the traditional backlight system in recent years The brightness of LED backlight is high, and the brightness of LED backlight will not decrease for a long time. Moreover, the...
