OEM/ODM Manufacturer Round Led Panel Light - High-luminous effect three in one 5054 RGB Series – Shineon Detail:

Product Description

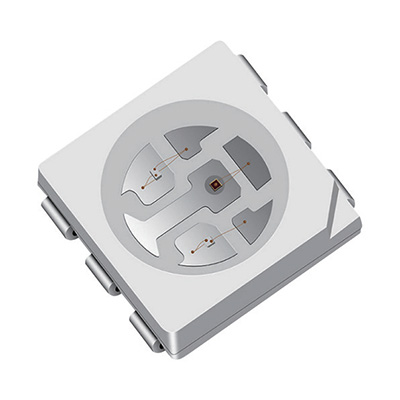

The RGB 5054 package has high efficiency intensity output, low power consumption, wide viewing angle and a compact
form factor. These features make this package an ideal LED for a broad range of lighting applications.
Size: 2.8×3.5mm/5.0×5.0 mm
Power: 0.2W/0.5W

Key Features
●High luminous Intensity and high efficiency
●Compatible with reflow soldering process
●Low thermal resistance
●Long operation life
●Wide viewing angle at 120°
●Silicone encapsulation/
●Environmental friendly, RoHS compliance
●Qualified according to JEDEC moisture sensitivity Level 4

Product Number	Color	Forward Voltage (V)	Current (mA)	Wavelength (nm)	Flux (lm)
2835RGB02-02-UT11-R01-J	RED	2.0-2.3V	20mA	620-650	2-3lm
	Green	2.8-3.1V		520-525	7-8lm
	Blue	2.8-3.1V		465-470	1.5-2lm
5050RGB05-06-UT16-F03	RED	2.0-2.3V	150mA	619-625	18.0-22.0lm
	Green	3.0-3.4V		520-525	38.0-44.0Im
	Blue	2.8-3.2V		465-470	8.0-12.0 lm

Download as PDF

2835RGB02-02-UT11-R01

Download

5050RGB05-06-UT16-F03

Download
